Float switch

Install one or more reed(s) in an enclosed non-magnetic conductivity tube. Then pass this tube through one or more float(s) that is (are) hollow with a ring-shape magnet inside. When liquid rises or lowers, it brings the float to move along with, causing the reed inside the tube to close or open and sending out the contact’s open (close) signal.



Real product diagram Dimension diagram Specification

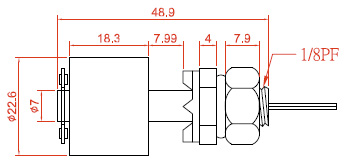

LS5-ABS-1PF-ST

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - PF 1/8
․Material – ABS

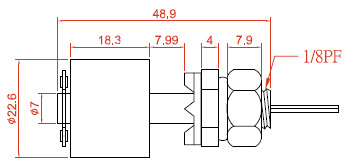

LS5-PP-1PF-ST

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - PF 1/8
․Material – PP

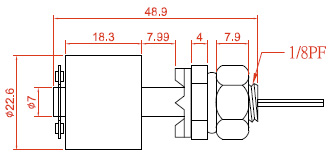

LS5-PVDF-1PF-ST

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - PF 1/8
․Material – PVDF

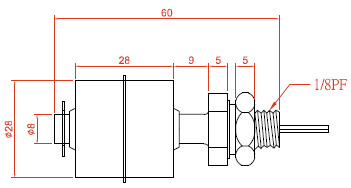

LS5-SUS304-1PF-ST

․Power consumption：10 / 70W(Max.)
․Switching current：0.5 / 1.0A DC(Max.)
․Limit current ：1.0 / 1.75A DC(Max.)
․Switching voltage：200 / 250VAC(Max.)
․Installation method: Upright type
․Thread：PF 1/8"
․Material ：Stainless steel 304/316

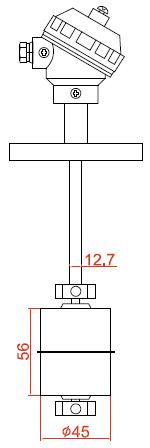

LS5-SUS304-KN

․Power consumption：10 / 70W(Max.)
․Switching current：0.5 / 1.0A DC(Max.)
․Limit current ：1.0 / 1.75A DC(Max.)
․Switching voltage：200 / 250VAC(Max.)
․Installation method: Upright type
․Thread：3/4"*10K
․Material ：Stainless steel 304/316

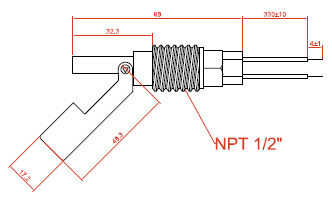

LS6-ABS-4NPT-SI

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - NPT 1/2
․Material – ABS

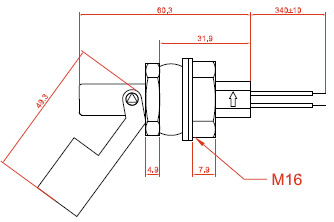

LS6-ABS-M16-SI

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - M16
․Material - ABS

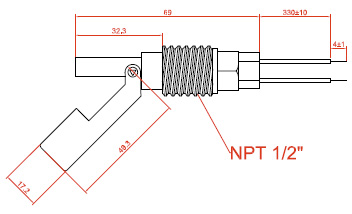

LS6-PP-4NPT-SI

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - NPT 1/2
․Material - PP

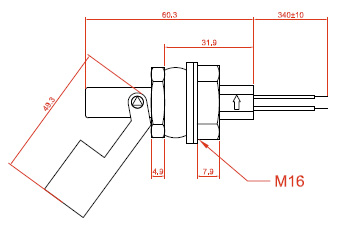

LS6-PP-M16-SI

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - M16
․Material – PP

LS6-PVDF-4NPT-SI

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - NPT 1/2
․Material – PVDF

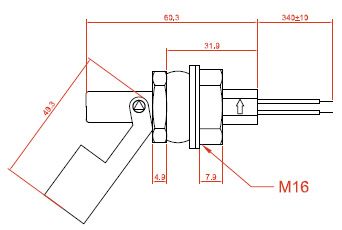

LS6-PVDF-M16-SI

․Power consumption - 10W (Max.)
․Switching current - 0.5 Amps DC(Max.)
․Limit current - 1.0 Amps DC(Max.)
․Switching voltage - 200 VDC(Max.)
․Thread - M16
․Material – PVDF

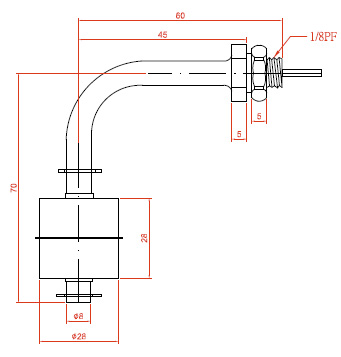

LS6-SUS304-1PF-L

․Power consumption：10 / 70W(Max.)
․Switching current：0.5 / 1.0A DC(Max.)
․Limit current ：1.0 / 1.75A DC(Max.)
․Switching voltage：200 / 250VAC(Max.)
․Installation method: Upright type
․Thread：PF 1/8"
․Material ：Stainless steel 304/316

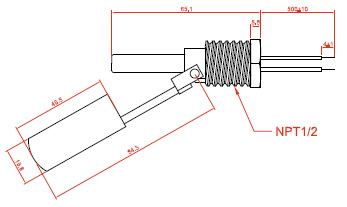

LS6-SUS304-4NPT-SI

․Power consumption：70W(Max.)
․Switching current：1.0A DC(Max.)
․Limit current ：1.75A DC(Max.)
․Switching voltage：200 VDC(Max.)
․Installation method: Side installation type
․Thread：NPT 1/2"
․Material ：Stainless steel 304
